X6
2

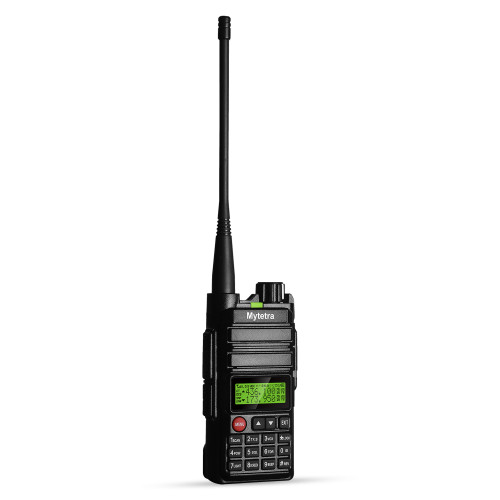

MYT-X6 CE Approved Dual Band Two Way Radio.
UHF and VHF acceptable,the amateur,ham best choice.
| Features |
| Dual band, dual display, dual standby |
| CTCSS/DCS |
| Chinese/English voice prompt |
| DTMF |
| Emergency alarm |
| VOX |
| Busy channel lockout |
| High/Low power selective |
| Scramble Function |
| FM radio |
| General Specifications | |
| Power Supply | 7.4V DC 1500/2200mAh |
| Frequency Range | 135-175MHz & 400-480MHz |
| Number of Channels | 128 channels |
| Operating Temperature | -25℃~ + 40℃ |
| Dimensions: H x W x D (mm) | 119*60*35 mm |
| Weight: (g) | 230g |
| Battery Capacity | 1300mAh/2200mAh |
| Transmitter Specifications | |
| Frequency Stability(-25 to 55, 25 Ref) | ± 2.5ppm |
| Power Output | 5W/1W (VHF) |
| 5W/1W (UHF) | |
| Modulation Limiting | ±≤5KHz@25KHz |
| FM Hum& Noise | 45dB@25KHz |
| Conducted/Radiated Emission | -36dBm < 1GHz, -30dBm > 1GHz |
| Adjacent Channel Power | -60dB |
| Audio Response | +1 ~ -3 dB |
| Audio Distortion | ≤5% |
| Receiver Specifications | |
| Sensitivity(12 dB SINAD)EIA | UHF/VHF: 0.25μV (12dB SINAD) |
| Intermodulation EIA | ≤65dB |
| Adjacent Channel Selectivity | ≤70dB |
| Spurious Rejection | ≤70dB |
| Rated Audio | ≤500mW |
| Audio Distortion@ Rated Audio | ≤5% |
| Audio Response | +1 ~ 3 dB |
| STEP | 5KHz / 6.25KHz / 10KHz / 12.5KHz / 25KHz / 50KHz / 100KHz |
