DM207A
6

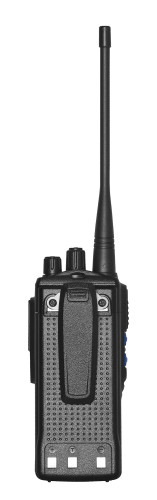

5W High Power Output DMR 207
| Features |
| Compatible with Motorola DMR radio in voice and message |
| 16 channels |
| Dual mode: DMR/Analog |
| PC programming |
| H/L power selective |
| TOT/VOX |
| Online update |
| CTCSS/DCS (Analog mode) |
| Wide/Narrow band select (Analog mode) |
| Encryption (Digital mode) |
| Private Call/Group Call/All call (Digital mode) |
| General Specifications | |
| Power Supply | 7.5V DC ±20% |
| Frequencies – Full Bandsplit | 136-174MHz/400-470MHz, |
| Number of Channels | 16channels, 2Zone |
| Channel Spacing | 12.5KHz |
| Operating Temperature | -25℃~ + 55℃ |
| Dimensions: H x W x D (mm) | 142x 62 x 37 (mm) |
| Weight: (g) | 260g |
| Battery capacity | 2000mAh |
| Standby Time | 55Hour |
| Transmitter Specifications | |
| Frequency Stability | ±2.5ppm |
| Power | Low Power:1W; High Power:5W |
| Hum and Noise | －40dB@12.5KHz |
| Conducted/Radiated Emission | -36dBm@<1GHz, -30dBm@>1GHz |
| Adjacent Channel Power | -60dB@12.5KHz |
| Modulation Limiting | ±≤5KHz@25KHz |
| Audio Response | ＋1dB ～ －3dB |
| Audio Distortion @ Rated Audio | <=5％ |
| Receiver Specifications | |
| Receive Sensitivity | ≤0.2uV |
| Intermodulation | TIA603C: 60dB ETSI: 60dB |
| Adjacent Channel Selectivity | TIA603C: 65dB@12.5KHz ETSI: 65dB@12.5KHz |
| Spurious suppression | TIA603C：75dB ETSI：70dB |
| Spurious Rejection | －58dBm@ < 1GHz，－47dBm @> 1GHz |
| Rated Audio | 1W |
| Audio Response | ＋3dB ～ －3dB |
| Audio Distortion @ Rated Audio | <=5％ |
